Round forming shoulders
Standard Formats

TOSS manufactures round collars for all models of Form/Fill/Seal Machines according to customer requirements.

These competitively priced computer generated forming collars of chequered stainless steel construction make it possible to have very gentle forming of the packaging film. This guarantees very low wear and low friction.

If desired: hardcoatings are available with Titanium Nitride, Chromium Nitride or DLC-protection against wear and tear, for longer shoulder life.

Design examples
Fin seam offset from centre: » vertical processing of flat film » fin seam upright in front » bag width 120 mm » out-of-centre 14 mm to left » entrance angle 15° » designed for Kawashima-machines Central fin seam central: » vertical processing of flat film » fin seam upright in front » bag width 150 mm » entrance angle 30° » designed for Kawashima-machines Fin seam leaning in front: » vertical processing of flat film » fin seam, leaning in front » bag width 154,5 mm » offset from centre 13 mm to left » entrance angle 45° » incl. film roller » designed for Bosch-machines
Combination fin and lap seam: » vertical processing of flat film » lap seam, width 40 mm, right over left » fin seam, width 18 mm, right over left » bag width 225 mm » entrance angle 45° » with fixed film roller » TiN-coating Central lap seam: » vertical processing of flat film » lap seam, width 20 mm, right over left » bag width 290,6 mm » entrance angle 45° Central lap seam, side view: » vertical processing of flat film » lap seam, width 20 mm, right over left » bag width 290,6 mm » entrance angle 45°

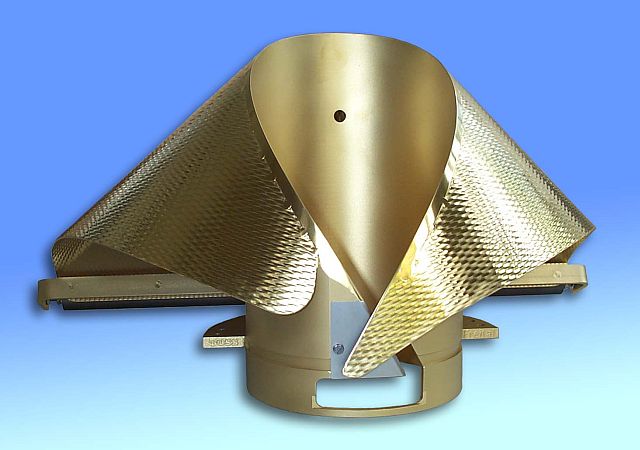

Lap seam lateral: » vertical processing of flat film » fin seam, width 30 mm, distorted, left over right, adjacent » bag width 130 mm » entrance angle 45° » designed for Bosch-machines Coating: » vertical processing of flat film » laps seam, width 20 mm, left over right » bag width 160 mm » entrance angle 30° » incl. film roller » TiN-coating Coating, back view: » vertical processing of flat film » laps seam, width 20 mm, left over right » bag width 160 mm » entrance angle 30° » incl. film roller » TiN-coating
Coating: » vertical processing of flat film » fin seam upright in front » bag width 220 mm » entrance angle 15° » TiN-coating » designed for Kawashima-machines Small entrance angle: » vertical processing of flat film » lap seam, width 15 mm, right over left » bag width 233 mm » entrance angle 25° » designed for Bosch-machines Small entrance angle: » vertical processing of flat film » lap seam, width 15 mm, right over left » bag width 200 mm » entrance angle 25° » designed for Rovema-machines
Small entrance angle, side view: » vertical processing of flat film » lap seam, width 15 mm, right over left » bag width 200 mm » entrance angle 25° » designed for Rovema-machines Big entrance angle: » horizontal processing of flat film » lap seam, width 30 mm, right over left » bag width 298 mm » entrance angle 120° With calibrate ring: » horizontal processing of flat film » lap seam, width 10 mm, left over right » bag width 100,5 mm » entrance angle 55° » with calibrate ring » designed for Polyclip-machines
Former with seamless forming edge for precise forming and most accurate film alignment. Open tube: » horizontal processing of flat film » lap seam, width 15 mm, left over right » bag width 172,79 mm » entrance angle 32° » designed for Polyclip-machines Big reshape height: » vertical processing of flat film » lap seam, width 40 mm, right over left » bag width 114 mm » entrance angle 60° » reshape height 300 mm
